Honda Civic FL5 Type R (2022+) 42mm R-Fin Triple Pass Track Spec Radiator

Out of stock
SKU: PWR132052-002
$2,429.52

Product details

  • SKU PWR132052-002
  • Barcode PWR132052-002

Important Information to read prior to purchasing PWR advanced Cooling Technology products.

  • In stock items ship within 1-3 Business Days.
  • Domestic shipping times are estimated at between 1-5 business days depending on your location within Australia.
  • Please allow 8-9 weeks for out of stock product fulfilment.

Please read our Returns & Warranty Policy

Description Shipping Policy

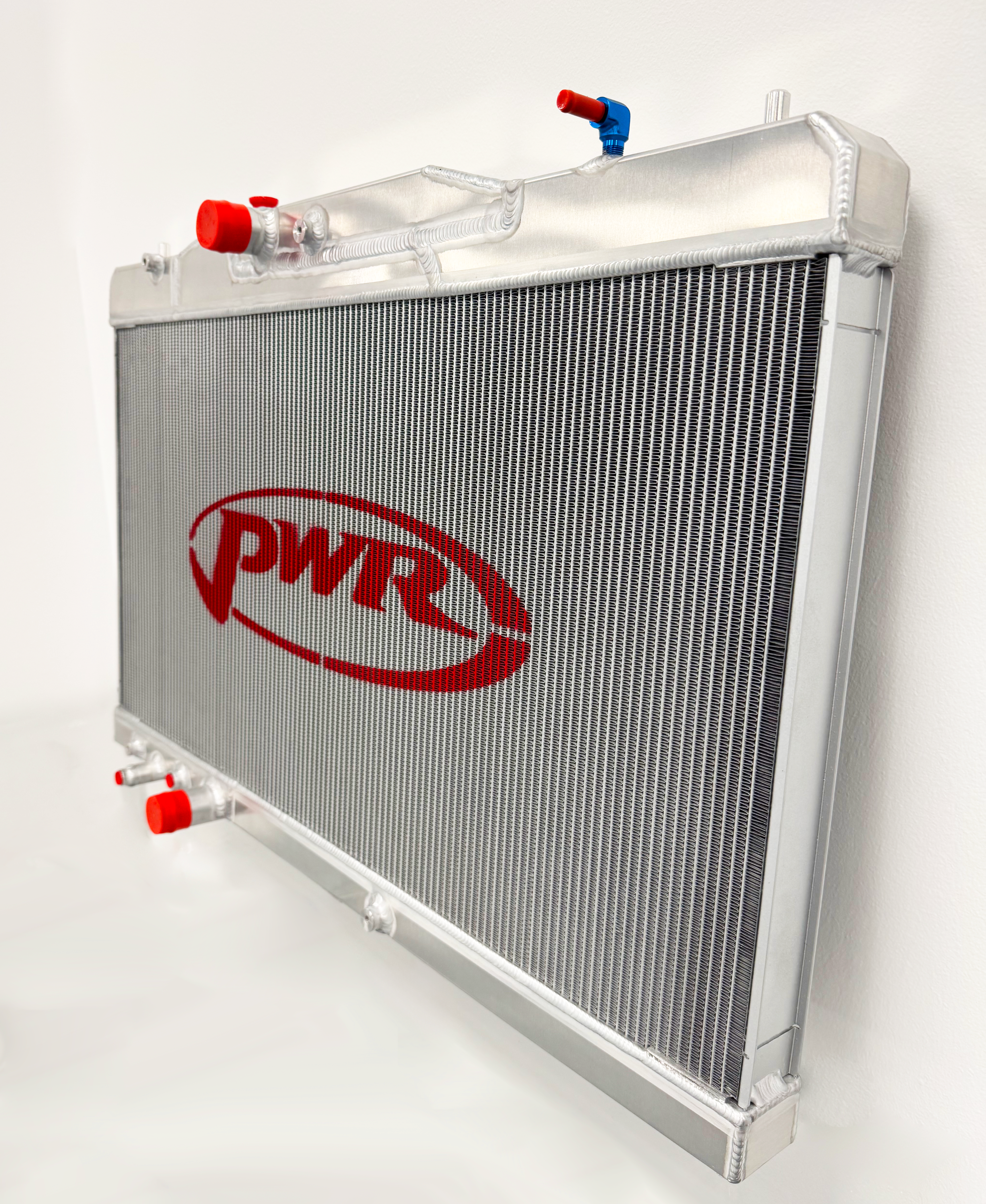

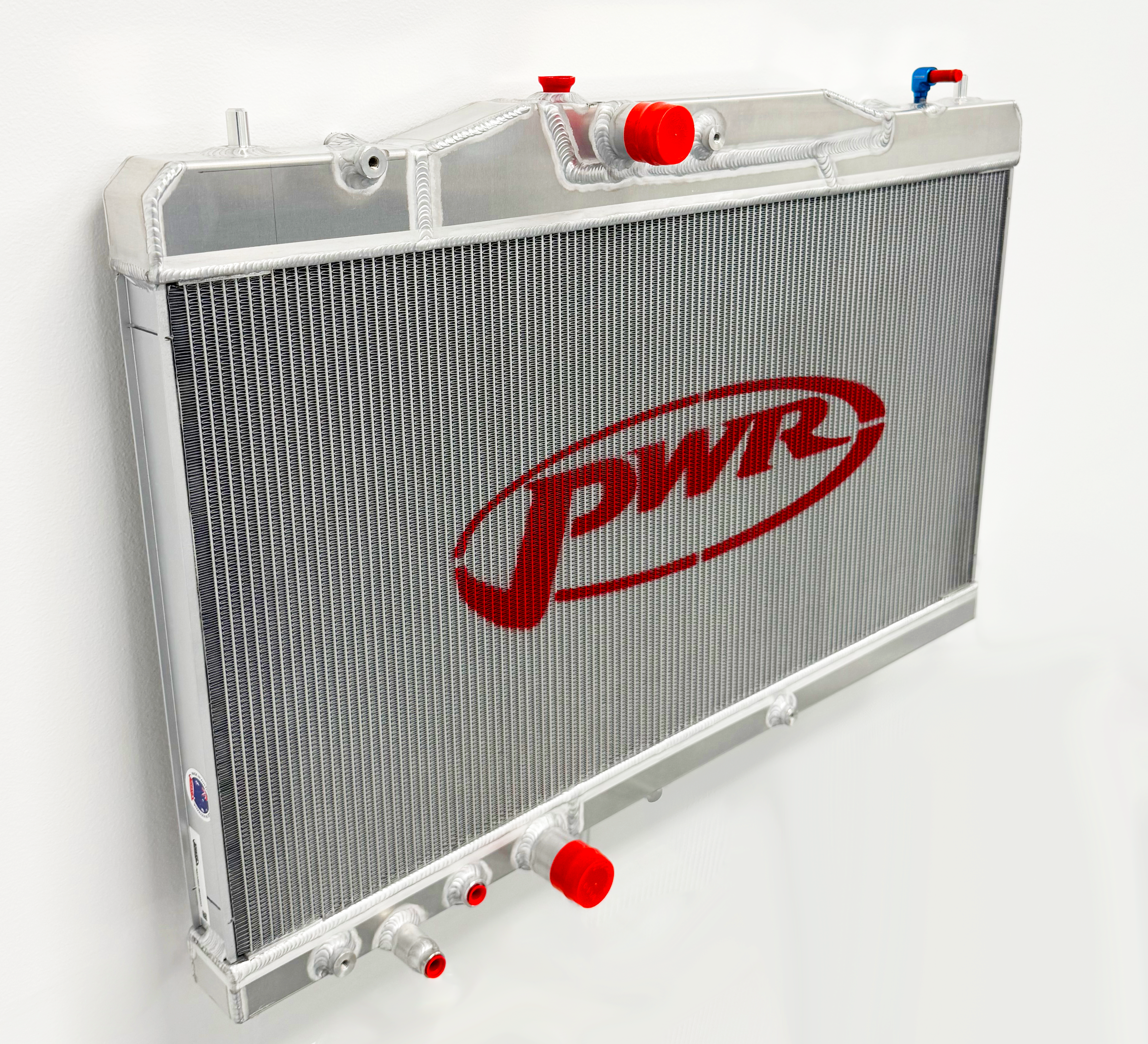

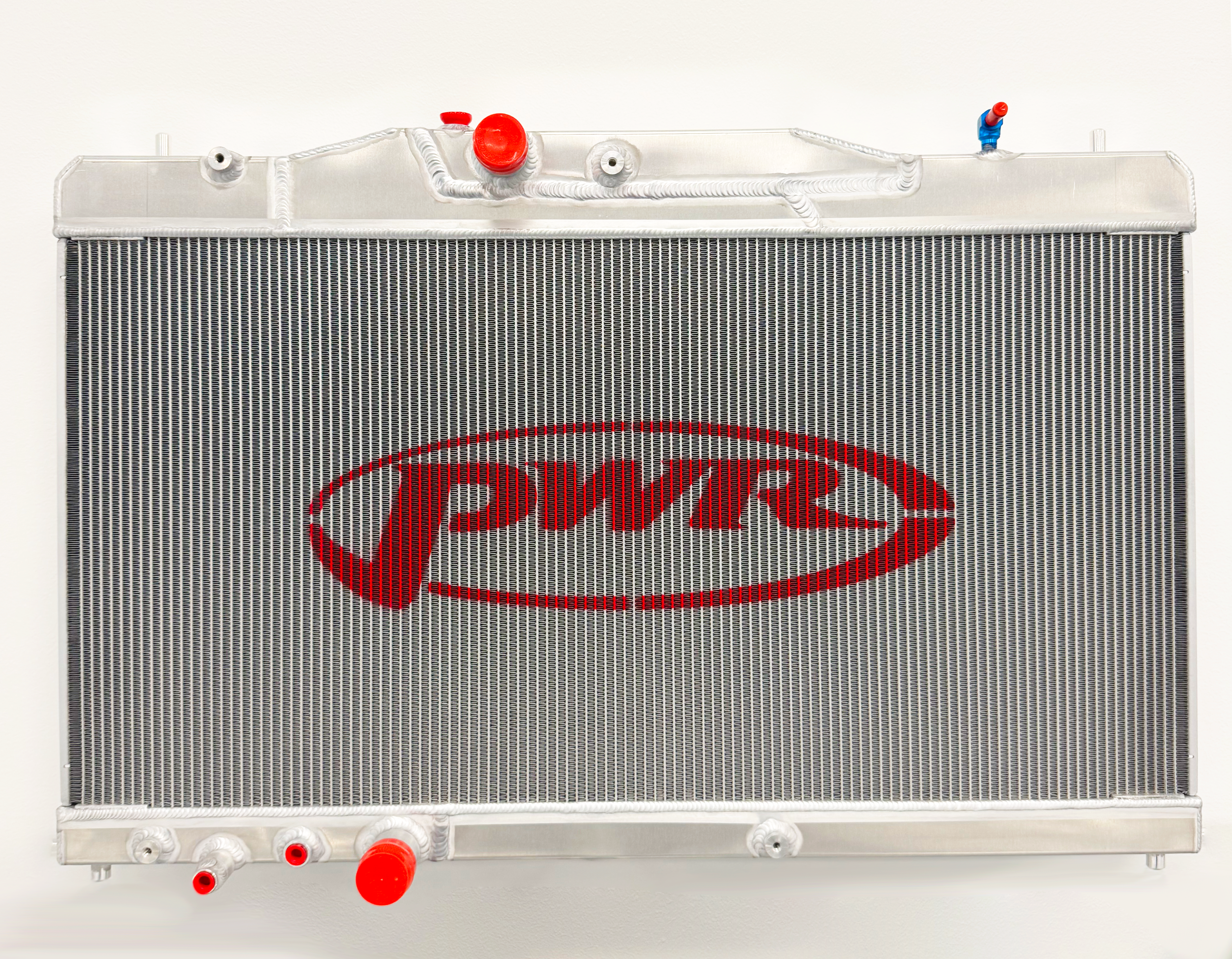

Honda Civic FL5 Type R (2022+) 42mm R-Fin Triple Pass Track Spec Radiator

PRODUCT DETAILS

  • Latest dimpled tube & fin technology
  • 42mm core thickness
  • Revolutionary close mesh fin pitch & louver angles optimised for high-speed track use
  • World-class TIG welding by our passionate fabricators
  • State-of-the-art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Race and street proven performance backed by comprehensive wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year-manufactured warranty
  • 100% Australian made

The ultimate cooling solution for the FL5 Honda Civic Type R, resulting in the all-new PWR Triple Pass Track Spec Radiator. Engineered for serious track enthusiasts, this radiator features a superior core design with highly efficient louvered R-fins and proprietary rolled dimple tubes that drastically increase heat transfer and coolant turbulence for maximum performance under extreme conditions. It maintains full OEM fitment for a seamless installation, making it the perfect upgrade for FL5/DE5 owners demanding reliability and performance without compromise.

This is the true cooling solution FL5/DE5 owners have been waiting for. Unlike conventional triple pass systems that can introduce unnecessary restriction and pressure drop, our design has been carefully engineered to optimize coolant flow without compromising velocity or efficiency. By balancing flow distribution across all three passes and integrating our low-restriction end tank geometry, we’ve created a high-efficiency system that thrives in punishing track environments. The result is unmatched thermal stability, even in the most demanding conditions.

SPECIFICATIONS

  • Natural Aluminium Finish
  • 485 x 758 x 52mm
  • Rolled Dimple Tube and Close Mesh R-Fin
  • Factory Size Outlets
  • Direct OEM Fitment
  • Track Use Only
  • **Disclaimer: We strongly advise against using reverse-flow hoses with this radiator, as they alter the intended coolant flow direction, resulting in reduced cooling efficiency.**

WHAT'S INCLUDED

  • 1 x Rolled Dimple Tube and Fin Radiator

COMPATIBILITY

  • HONDA Civic FL5 Type R (2022+)

PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.
