Universal 55mm Drift Radiator Module W/ Dual 14″ Fans, -20 AN Port Inlet & Outlet

PRODUCT DETAILS

  • Up to 30% more efficient than Standard OEM using the latest tube & fin technology
  • Varied core combinations using 26, 32, 42, 55 & 68mm tubes
  • Revolutionary fin pitch from 10-22FPI and louver angles
  • World class TIG welding by our passionate fabricators
  • State of the art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Race and street proven performance backed by comprehensive wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% Australian made

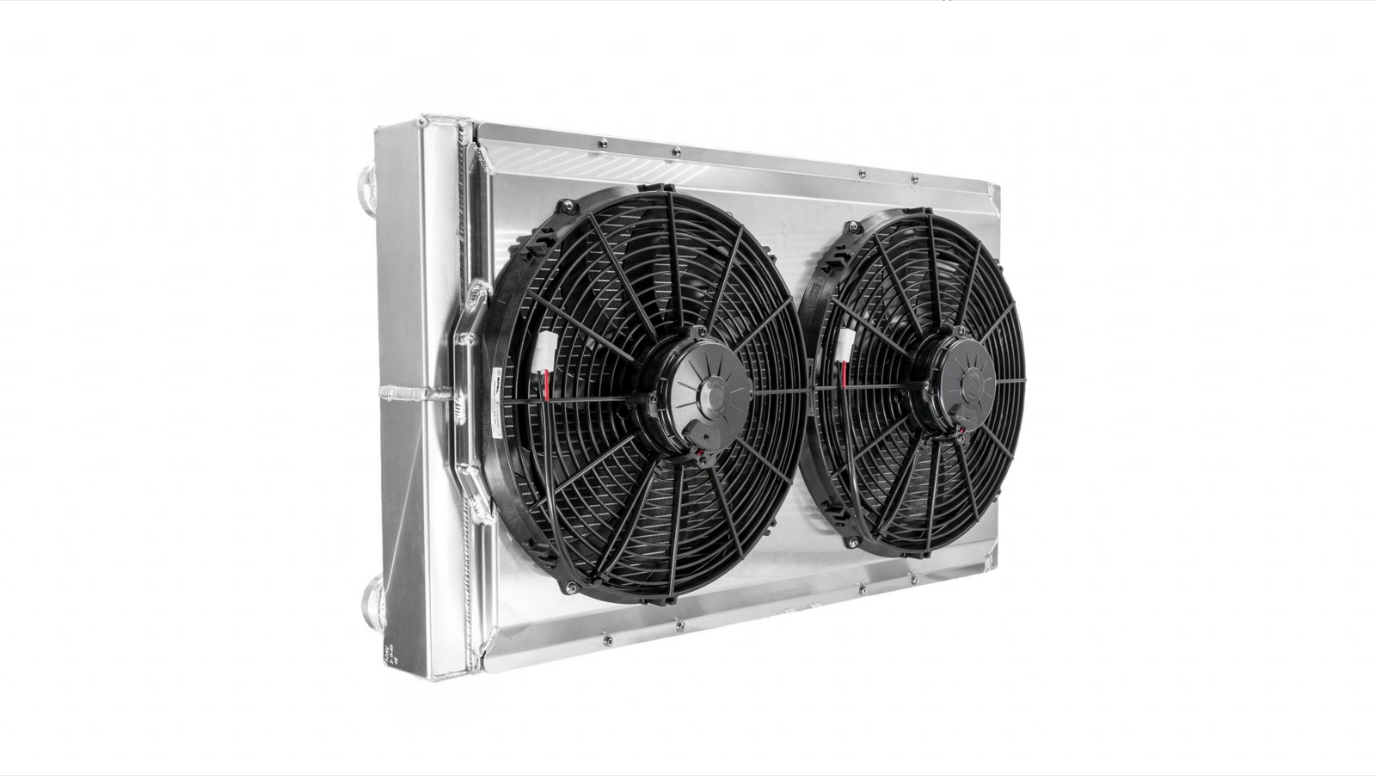

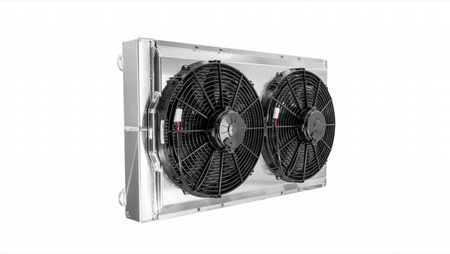

Introducing the PWR Universal Drift Radiator Module, the ultimate cooling solution for a wide variety of high-performance drift cars! This radiator boasts a dual pass core with AN-20 female inlets and outlets, and AN-12 drain ports with plugs for easy draining of coolant, regardless of the mounting position. The universal drift radiator boasts superior strength and heat dissipation capabilities compared to our competitors thanks to its engineered tube and louvered R-Fin technology. Not only that, but it’s also handcrafted and Tig welded in the Australia, making it one of the most durable and high-quality drift radiators available on the market.

But that’s not all! This radiator also includes two Maradyne 14-inch Blade Reversible fans, which are together rated at an impressive 4270 CFM. These Maradyne  High performance models ensure you get the maximum possible performance while benefiting from motor life that is second to none.

With its high-quality construction and unbeatable performance, the PWR Universal Drift Radiator Module is the perfect choice for anyone looking to take their drift car to the next level. Order yours today and experience the unfair advantage in cooling technology!

Please note that we do not recommend going smaller than AN-20 coolant lines. Running smaller diameters than recommended can restrict coolant flow, affecting the performance of the radiator, raising coolant temps.

SPECIFICATIONS

  • Natural Aluminium Finish
  • Rolled Dimple Tube and R-Fin
  • -20AN Inlet and Outlet

WHAT'S INCLUDED

  • 1 x Rolled Dimple Tube and R-Fin Universal Drift Radiator
  • PWR Shroud
  • x2 14" Maradyne 14-inch Blade Reversible fans

COMPATIBILITY

  • Universal

PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.
